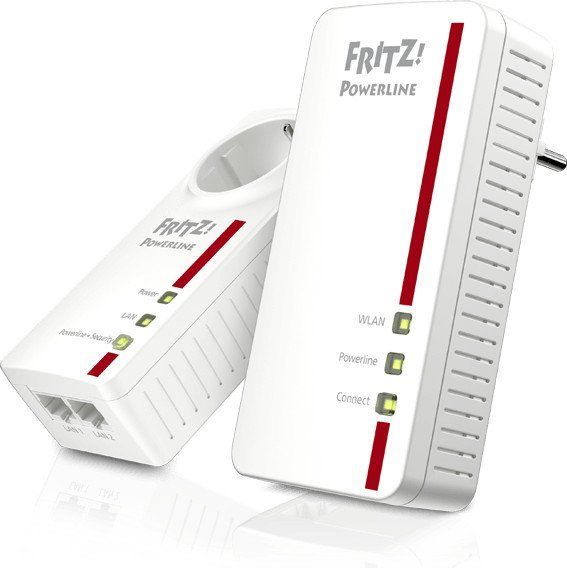

AVM Fritz Powerline 1260E WLAN, komplektis 2 tk.
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
- Use of the socket as a secure Internet and network access (Powerline)
- Ultra-fast 1,200 Mbps, ideal for NAS applications and HD streaming
- Compatible with all common powerline adapters
- Maximum range and more robust connection (2x2 MIMO, Diversity)
- Easy commissioning thanks to factory-matched adapters (Plug & Play)
- Integration of additional adapters quickly and safely at the touch of a button
- Secure transmission through modern, individual 128-bit AES encryption
- Ultra-fast Gigabit LAN connection, ideal for data-intensive applications such as HD streaming
- WLAN access point with up to 866 Mbps (WLAN AC) + 400 Mbps (WLAN N), prepared for WLAN Mesh of the FRITZ!Box
- Convenient transfer of the FRITZ!Box's WLAN settings and encryption
- Complete integration and overview of Powerline adapters in the FRITZ!Box user interface
- Connection overview as well as function and security updates in the FRITZ!Powerline program
Services
Maximum data transfer rate
The maximum speed at which data can be transferred from one device to another.
1200 Mbps
Ethernet/LAN
An Ethernet LAN (Local Area Network) interface is available for a wired connection.
Interface type Ethernet LAN
The properties of the Ethernet LAN interface.
Gigabit Ethernet
Ethernet LAN data transfer rates
The different speed levels of the Ethernet LAN connection.
10, 100, 1000 Mbps
Copper Ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Number of Ethernet LAN ports (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connection interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the Ethernet.
1
Wi-Fi
Popular technology that allows an electronic device to exchange data over radio waves or to connect wirelessly to the Internet.
Wi-Fi standards
The type of wireless local area network (LAN): ad-hoc (where units in a network communicate peer-to-peer) or Infrastructure (units communicate with each other via an access point). A LAN interconnects computers in a small area eg home, school or office.
802.11a, 802.11b, 802.11g
WLAN data transfer speed
866 Mbps
Network standard
The way in which the network is working, eg IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i
Plug
A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.
Type F
Built-in socket
There is a power socket (port) in the device.
PowerLine standard
Power-line communication (PLC) carries data on a conductor that is also used simultaneously for AC electric power transmission or electric power distribution to consumers. Two distinctly different sets of standards apply to powerline networking as of early 2010. Within homes, the HomePlug AV and IEEE 1901 standards specify how, globally, existing AC wires should be employed for data purposes. The IEEE 1901 includes HomePlug AV as a baseline technology, so any IEEE 1901 products are fully interoperable with HomePlug AV, HomePlug GreenPHY or HomePlug AV2 specification.
HomePlug AV2
Supported security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
128-bit AES
energy
AC input voltage
The voltage of the AC current supplied to the product.
230 V
AC input frequency
50 Hz
design
LED displays
LAN, performance
Product color
The color e.g. red, blue, green, black, white.
White
System requirements
Supports Windows operating systems
Windows versions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight and dimensions
Width
The size or extent of an object from one side edge to the other.
67 mm
depth
The distance from the front to the back edge of an object.
32 mm
Height
Height of the product
132 mm
Weight
Weight of the product without packaging (net weight). Where possible, the net weight is stated including standard accessories and supplies. Please note that manufacturers sometimes provide an overly commercial interpretation of the product weight, without including the weight of accessories and/or accessories.
200g
Scope of delivery
Quick Installation Guide
Supplied cables
LAN (RJ-45)
