Kit for 16 IP cameras, 16P+2G PoE switch

Kit for up to 16 IP cameras, in ABOX-H indoor enclosure (space for NVR recorder), 192 W power supply (2 x 96 W), 18-port PoE switch (16 x PoE 10/100 Mbps + 2 x Gigabit Uplink), electronic fuses.

Key features and functions:

• 4K Ultra HD camera support
• provides power supply for 16 PoE 802.3af/at or PASSIVE receivers
• separate electronic fuse for each PoE channel (auto-reset)
• option to disable power on individual PoE ports
• clear LED indication of power and data transmission status
• up to 40 W of power on PoE ports (LAN_1 to LAN_8)
• quick and easy setup with no configuration required
• high efficiency of the power supply module (>90%)
• easy and quick installation service thanks to modular design
• simple system expansion and scalability by adding additional xPoE/IP or IPB/IPUPS series switches
• module installation in any perforated part of the mounting plate (hole pattern system)
• space for a network video recorder (NVR)
• possibility of storing excess cables inside the enclosure
• cable entry points at the rear of the enclosure
• distance to the wall/mounting surface

The kit includes:

1x ABOX-H enclosure

2x APS-90-480-OF power supply

2x xPoE-10-20-OF PoE switch

Notes:

• maximum dimensions of the recorder mounted inside the enclosure: 390 x 390 x 60 mm

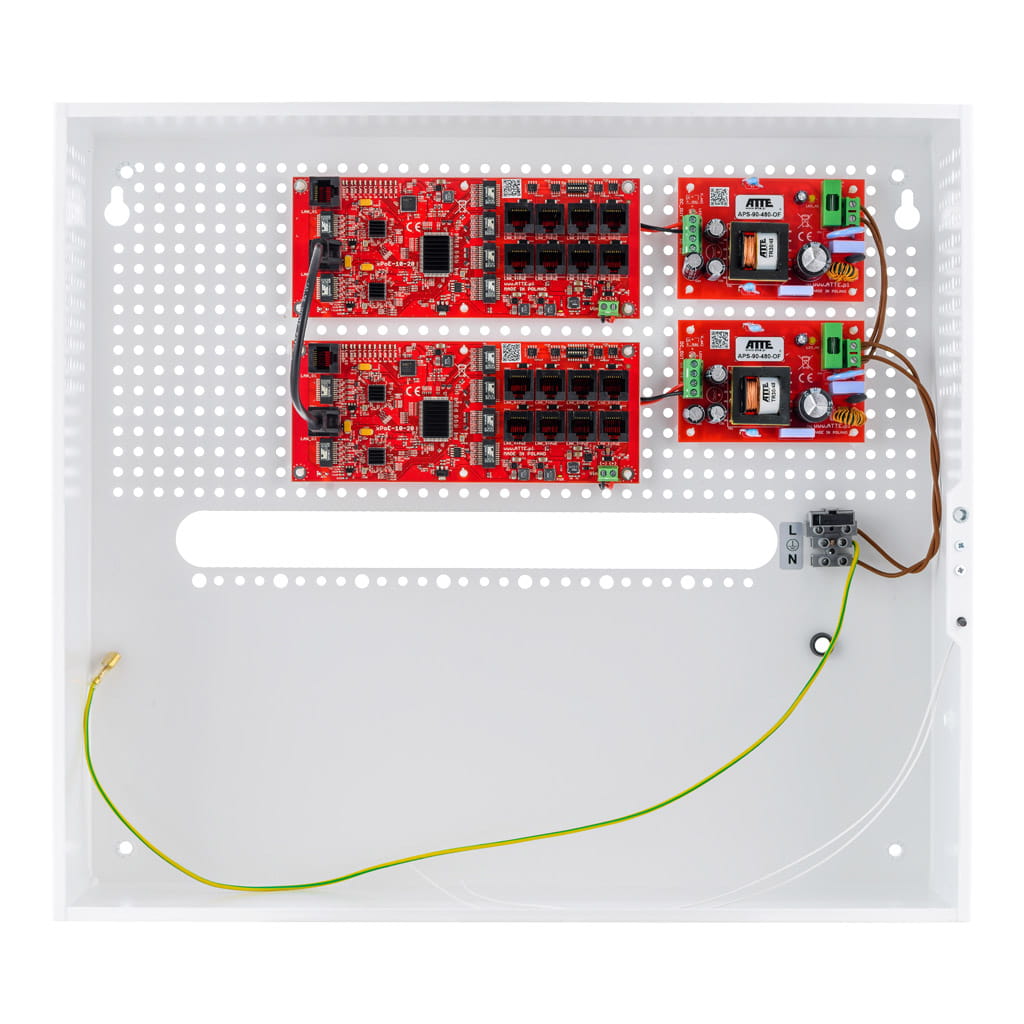

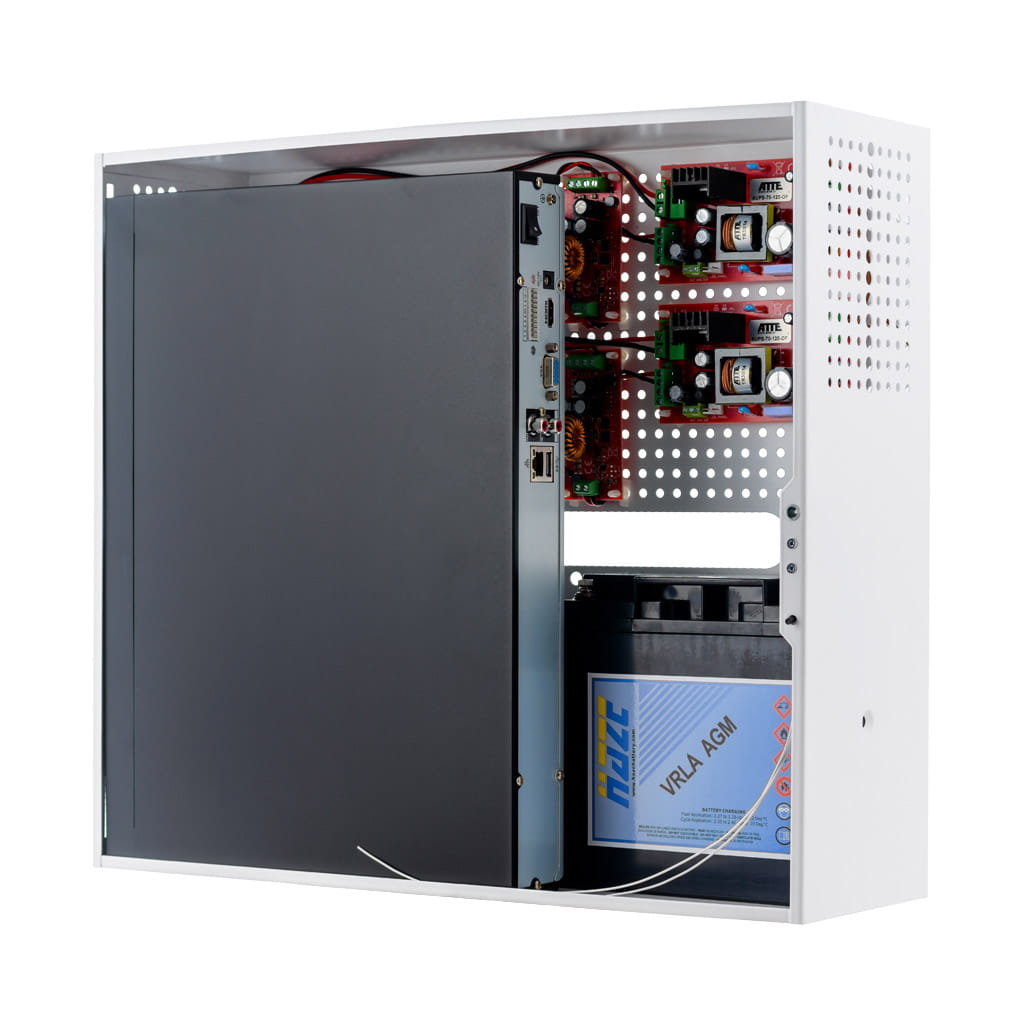

• the photo with the NVR recorder shows an example configuration of devices in the ABOX-H enclosure

IP-16-20-H is a ready-to-use kit designed to power an IP CCTV system consisting of 16 IP cameras. Electronic PoE output protection ensures continuous operation of the entire system in the event of a short circuit or overload on a single PoE port, and automatic voltage restoration after the failure has been resolved. The device is used in systems requiring increased network bandwidth, such as 4K Ultra HD CCTV monitoring.

Kits with PoE switches are designed to work with IP cameras and other network devices powered by PoE 802.3af/at and PoE PASSIVE standards.

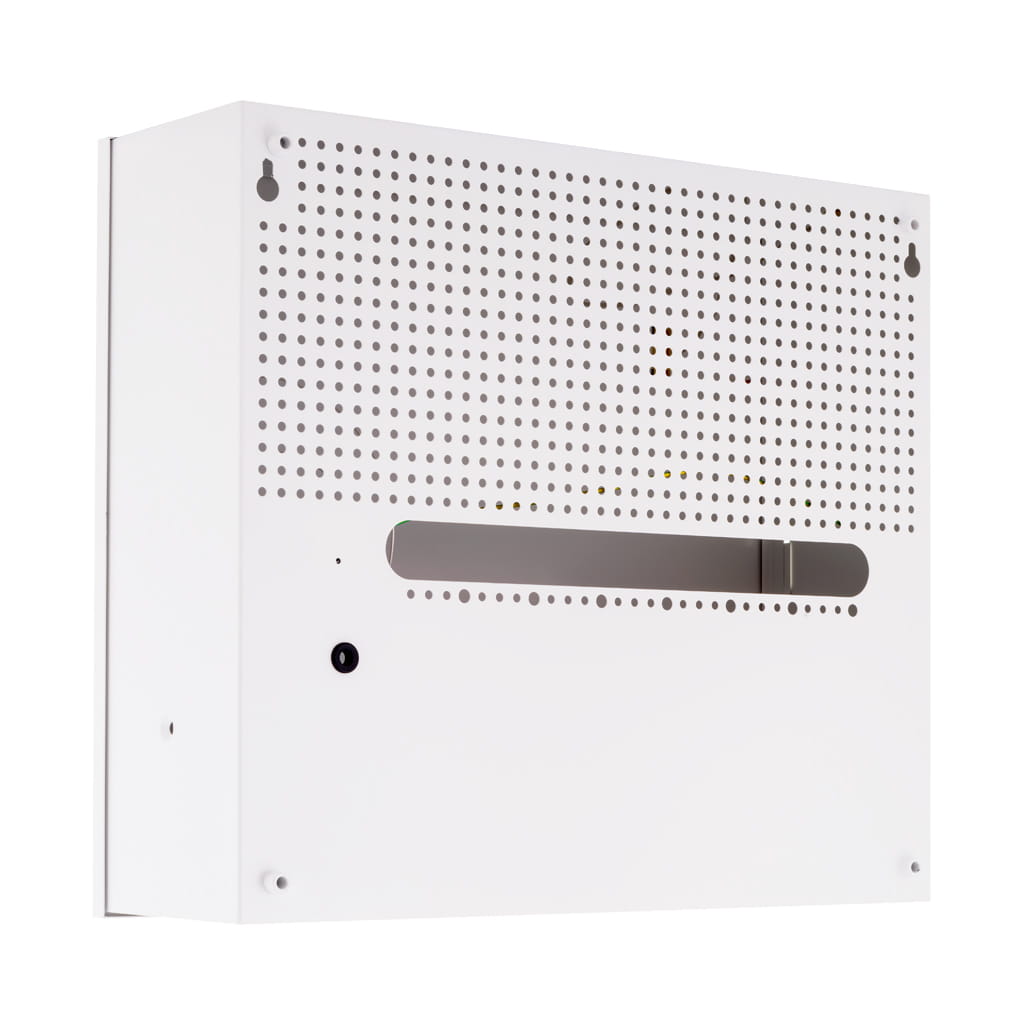

ABOX series indoor enclosures provide a convenient solution for the aesthetic installation of devices and termination of cabling inside buildings. All enclosures are made of powder-coated steel sheet finished in semi-matt white. Production using a modern technological line ensures the highest quality and precision of workmanship. Each enclosure is equipped with a screw lock, removable door, and door tamper switch.

The available models feature dedicated perforation with a 10.8 mm hole pattern, compatible with the mounting hole spacing of installation modules. This system solution enables vertical or horizontal installation of selected devices in any perforated section of the enclosure.

Example application of the IP-16-20-H kit for powering 16 PoE IP cameras.
