Buffer kit for up to 5 IP cameras, PoE switch 5P+1UP

Key features and functions:

• provides buffer supply for up to 5 PoE 802.3af/at or PASSIVE devices
• allows data transmission up to 280 m (Long Range mode)
• electronic fuse for each PoE channel (auto-reset)
• PoE can be disabled on selected ports
• clear LED indication of power and data transmission status
• up to 40 W of power per PoE port
• quick and easy setup with no configuration required
• high efficiency of the power supply (>90%)
• two supply voltage options are available: 12 VDC and 48 VDC
• quick and easy installation service thanks to modular design
• easy expansion and scaling of the system by adding additional xPoE / IP and IPB / IPUPS series switches
• installation of modules in any perforated part of the enclosure (hole pattern system)
• mounting plate with a shelf for a 7 Ah battery
• cover and enclosure connected with a cord for easier servicing
• possibility of storing excess cables inside the enclosure

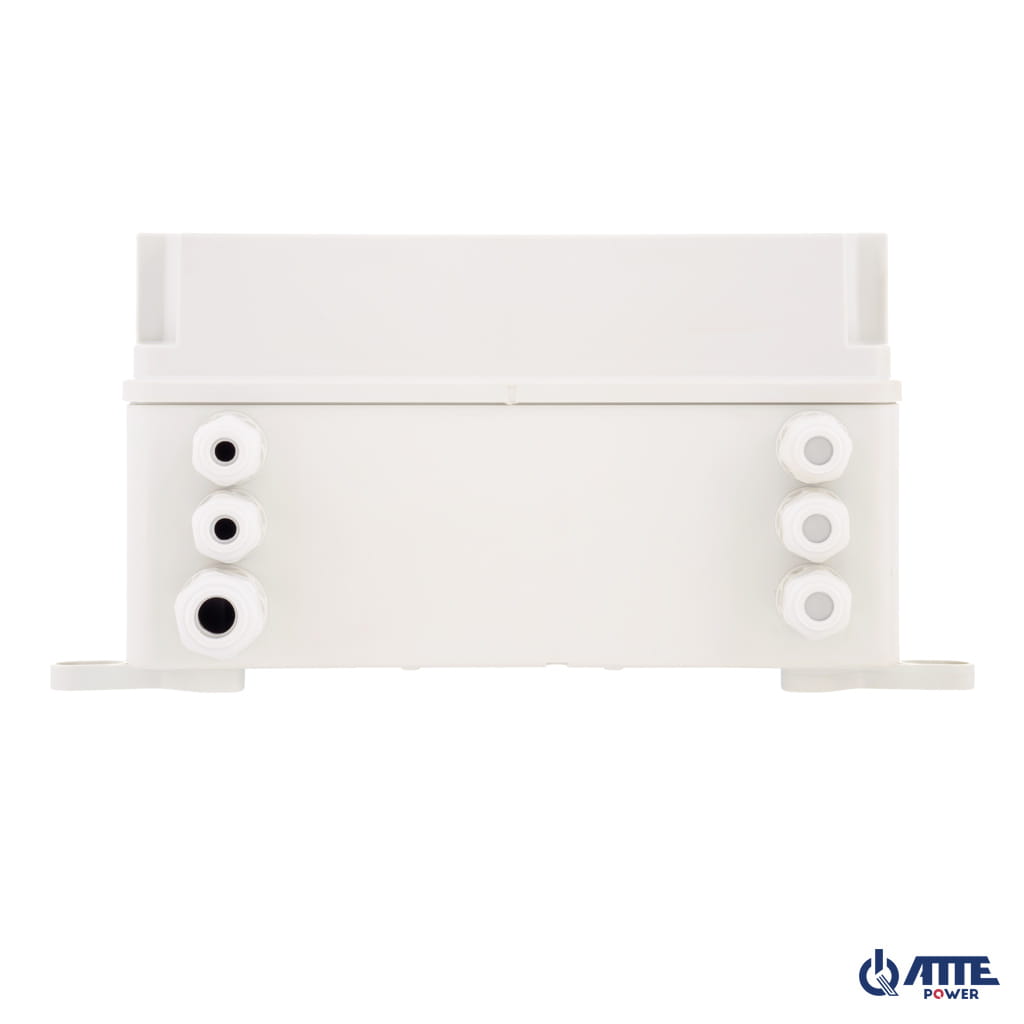

• cable entry through cable glands mounted in the enclosure: 5xM16 and 1xM20

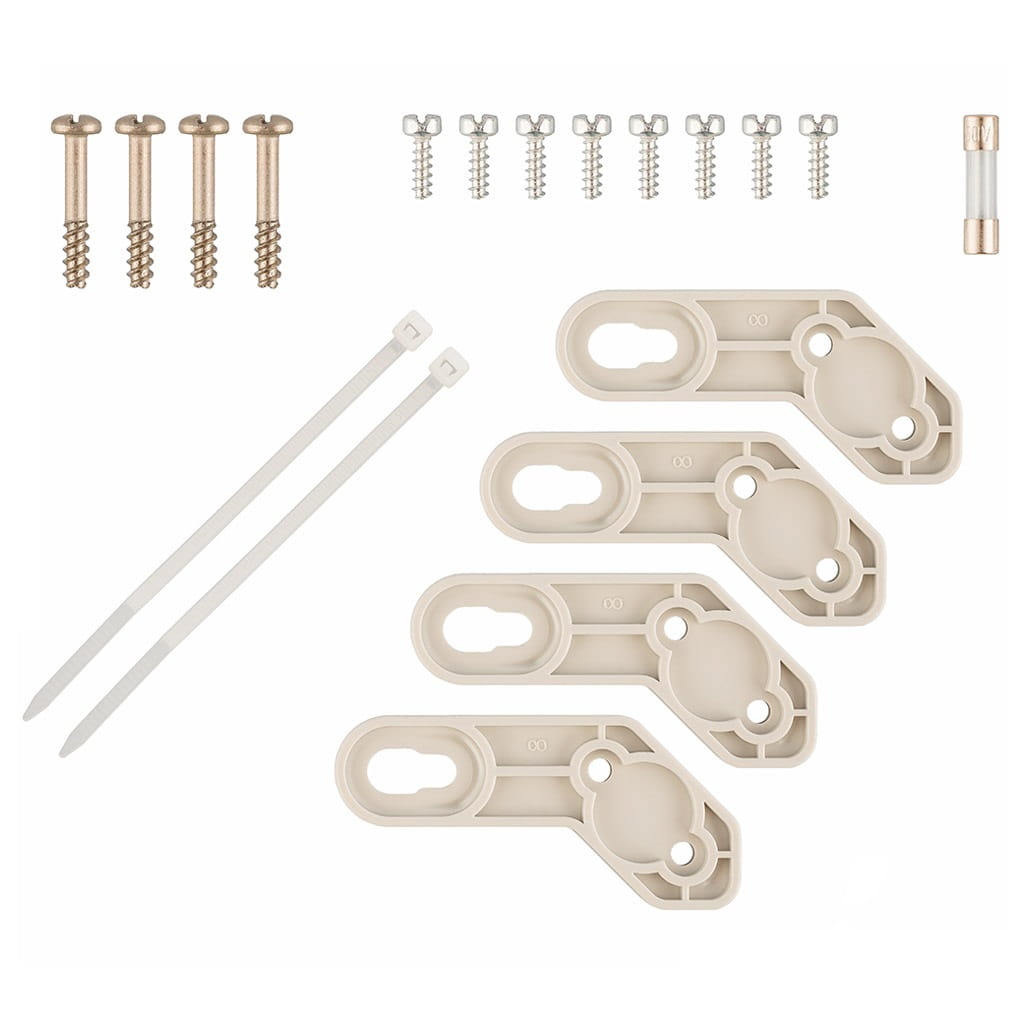

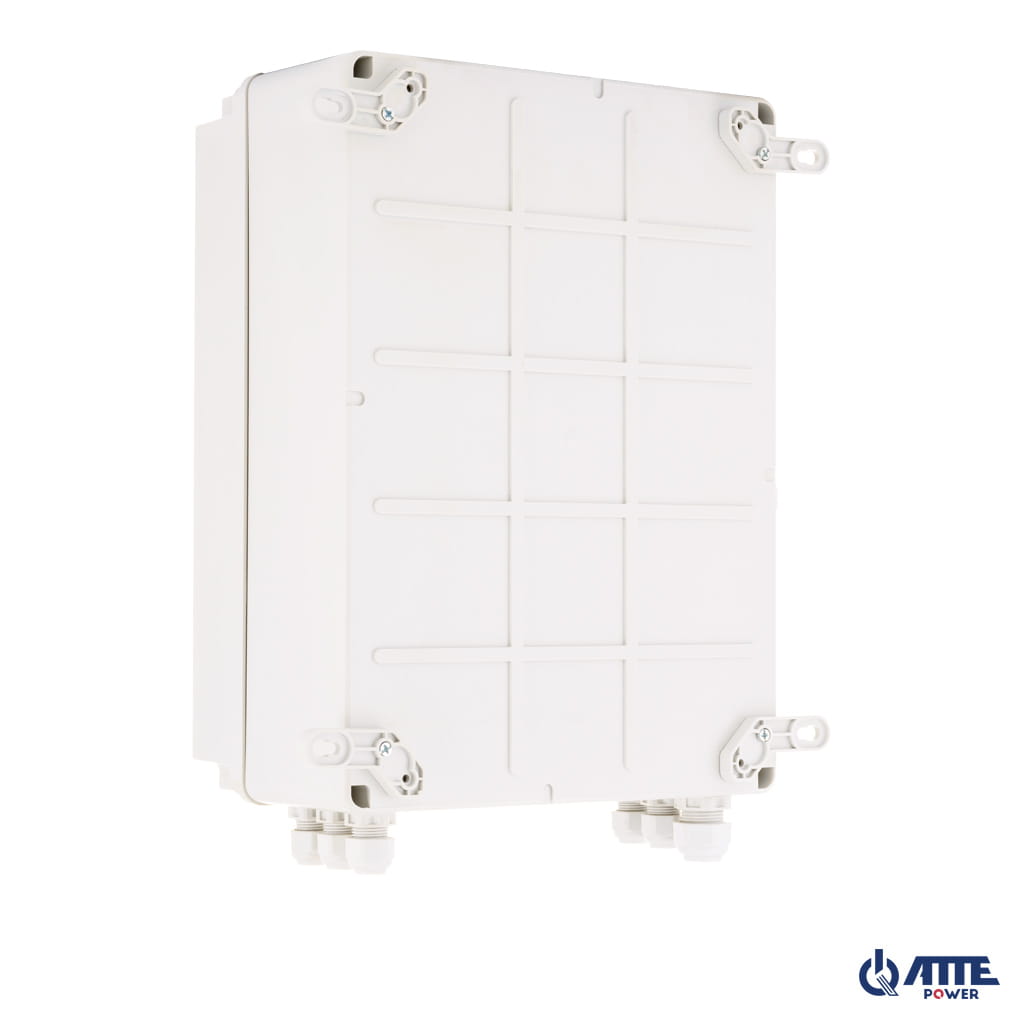

• includes 4 brackets for mounting the enclosure without affecting the IP56 protection rating
• the optional ADD-PMAXL adapter allows for easy mounting of the enclosure on poles or lighting columns

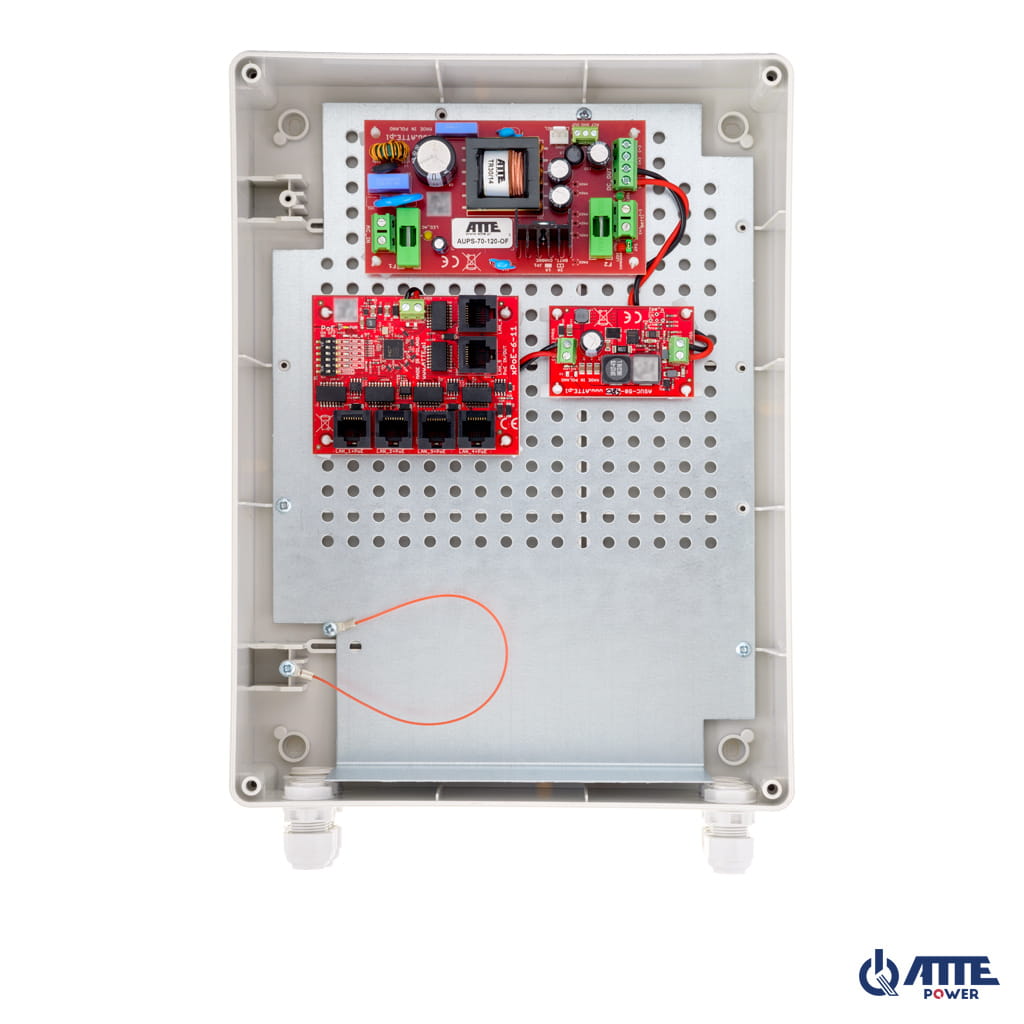

The kit includes:

1x ABOX-XL2 enclosure

1x AUPS-70-120-OF power supply

1x ASUC-50-480-OF DC/DC converter

1x xPoE-6-11-OF switch

Note: battery not included

The IPUPS-5-11-XL2 is a ready-to-use kit designed to provide buffered power for an IP CCTV system with 5 IP cameras. Electronic protection on the PoE outputs ensures continuous operation of the system in the event of a short circuit or overload on individual power channels, and automatically restores voltage once the fault is cleared.

Buffered PoE switch kits are intended for use with IP cameras and other network devices supporting PoE 802.3af/at or PASSIVE PoE.

Connecting appropriate batteries ensures uninterrupted operation of the power system during temporary mains power outages.

The “Long Range” mode allows you to increase the transmission range up to 280m using standard UTP twisted pair cable. The switch allows you to work in two modes: standard and extended range. When the Long Range switch is in the OFF position, all ports operate at 100 Mbps and offer Ethernet range up to 100 meters. When the dip switch is set to ON, the range on ports 1 to 4 is increased to 280 meters, while the speed on these ports is reduced to 10 Mbps. This bandwidth is sufficient for the efficient operation of a single camera. In both modes, the speed of UpLink ports 5 and 6 is 100 Mbps. With LongRange mode enabled, we provide greater flexibility in camera placement. Increasing the distance from the switch allows for easier coverage of a large area without the need to build additional distribution points.

“STANDARD” mode (MODE = OFF)

LAN 1 ... LAN 4 - 10/100 Mbps PoE OUT, range up to 100m

LAN 5 - 10/100 Mbps, PoE IN/OUT range up to 100m

LAN 6 - 10/100 Mbps, range up to 100m

“LONG RANGE” mode (MODE = ON)

LAN 1 ... LAN 4 - 10 Mbps PoE OUT, range up to 280m

LAN 5 - 10/100 Mbps, PoE IN/OUT range up to 100m

LAN 6 - 10/100 Mbps, range up to 100m

Regardless of the selected operating mode, the switch supports PoE short-circuit and surge protection to protect network devices.

Port 6 UpLink cannot enable PoE regardless of the selected operating mode. It allows for secure connection of different LAN segments.

Notes:

• by default, LongRange mode is disabled
• changing modes requires a power restart
• it is recommended to test the functionality before deployment
• no VLAN port isolation – all switch ports can communicate with each other uninterrupted, regardless of the operating mode
• for long-distance setups, we recommend powering the switch with 55 V from a dedicated APS-90-550-OF power supply or using an ASUC-100-550-OF converter in buffered sets
• the transmission distance depends on the cable used; Cat5e or Cat6 cables are recommended. Using low-quality cables or CCA cables will significantly reduce the range and limit the PoE power available to the camera

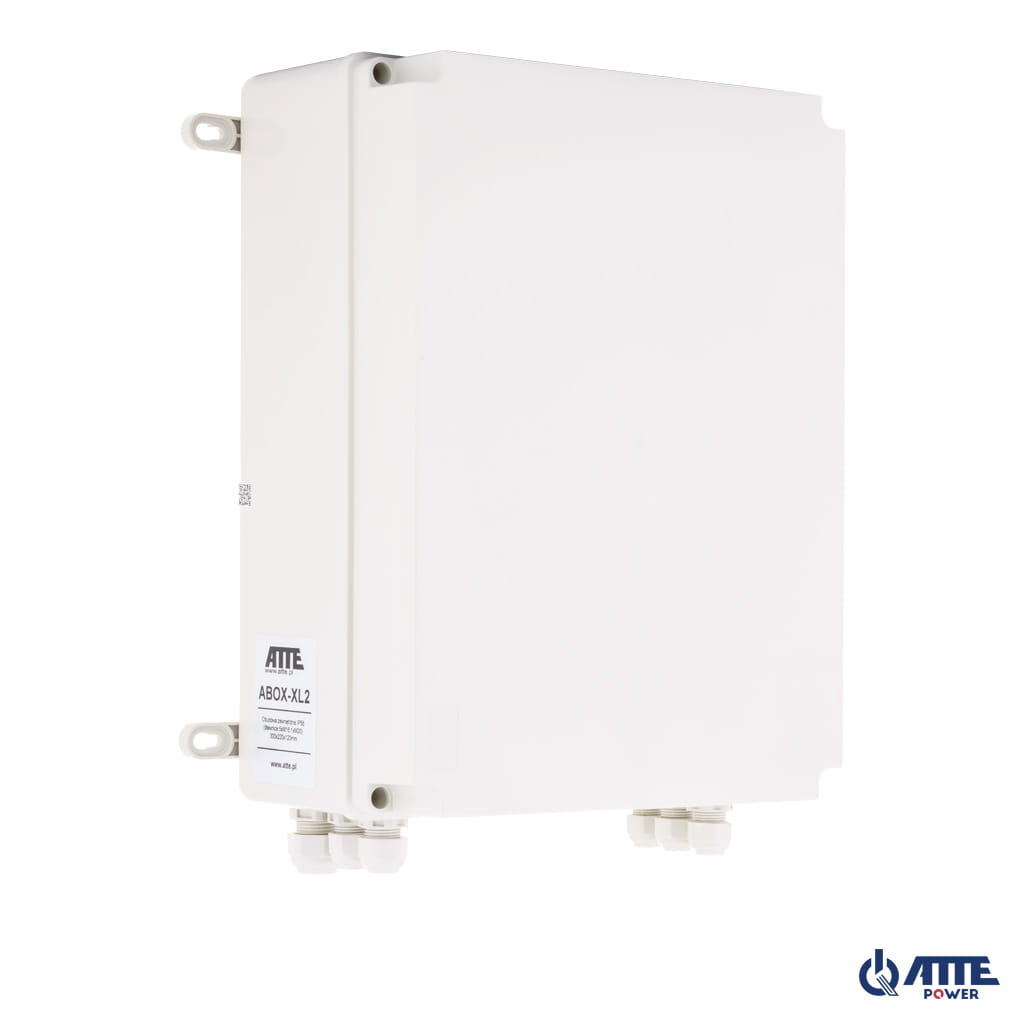

The ABOX series outdoor enclosures provide a convenient solution for protecting devices and cable connections installed in outdoor conditions. The available models come equipped with a mounting plate featuring specially designed holes on a 10.8 mm hole pattern. This layout is fully compatible with the mounting hole pattern of installation modules. The system design allows selected devices to be mounted vertically or horizontally in any perforated section of the mounting plate.

Example application of the IPUPS-5-11-XL2 kit to power 5 PoE IP cameras.
