Buffer kit for up to 8 IP cameras, 8P+2G PoE switch

Buffer kit for up to 8 IP cameras, in RACK ABOX-R5U0 enclosure (space for 18 Ah battery), 72 W power supply, 10-port PoE switch (8xPoE 10/100Mbps + 2xGigabit Uplink), electronic fuses.

Key features and functions:

• 4K Ultra HD camera support
• buffer power supply for 8 PoE 802.3af/at or PASSIVE receivers
• electronic fuse for each PoE channel (auto-reset)
• PoE can be disabled on selected ports
• clear LED indication of power and data transmission status
• up to 40W of power on PoE ports (LAN_1 to LAN_8)
• quick and easy setup with no configuration required
• high efficiency of the power supply module (90%)
• two supply voltage options are available: 12 VDC and 48 VDC
• easy and quick installation service thanks to modular design
• easy expansion and scaling of the system by adding additional xPoE / IP and IPB / IPUPS series switches
• installation of modules in any perforated part of the enclosure (hole pattern system)
• space for two 18 Ah batteries
• cable entry points at the rear of the enclosure
• additional cable entry points provides space between the body and cover of the enclosure
• convenient, tool-free installation and removal of the cover (push-fit)
• a graphite color selected in such a way that the enclosure matches both dark and light cabinets
• equipped with a connector and an electrical terminal block with a fuse
• possibility of storing excess cables inside the enclosure

The kit includes:

1x ABOX-R5U0 enclosure

1x AUPS-70-120-OF power supply

1x ASUC-100-480-OF DC/DC converter

1x xPoE-10-20A-OF PoE switch

Note: batteries not included

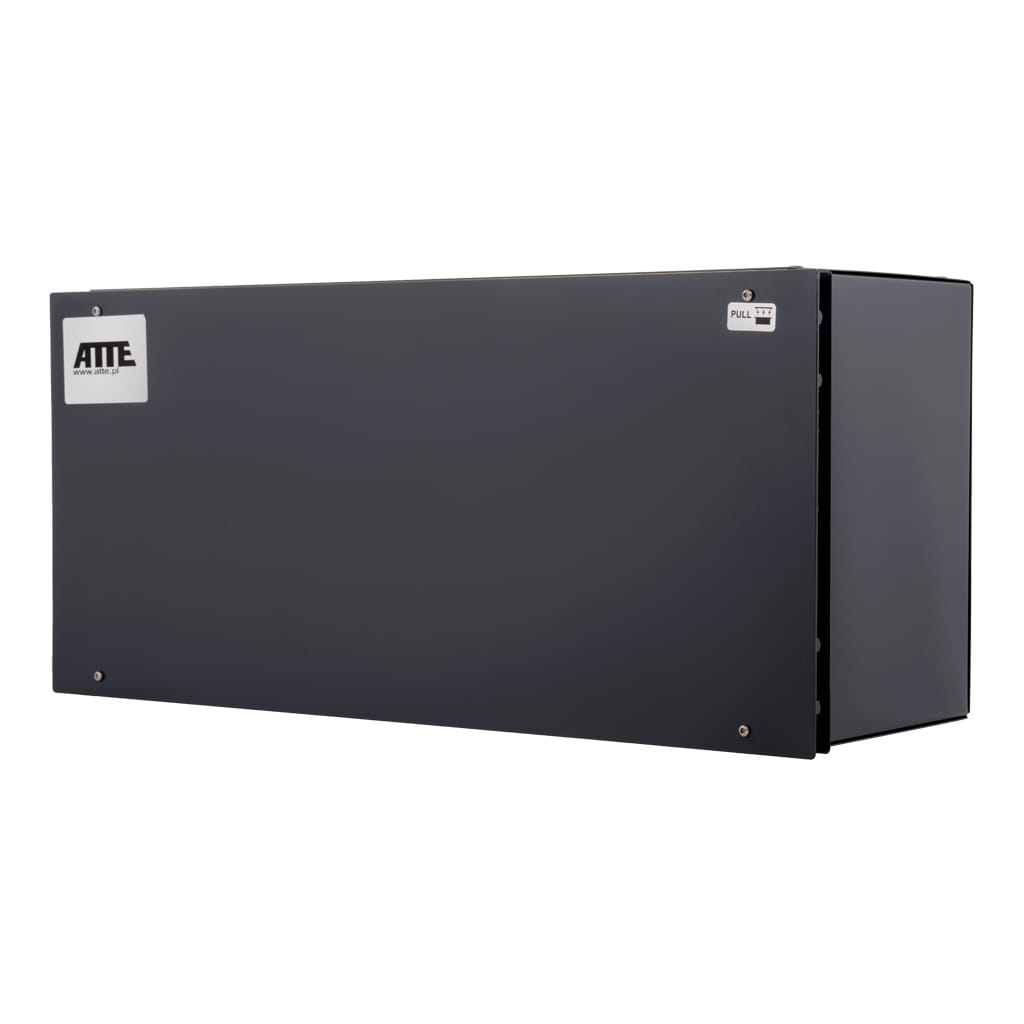

Enclosure cover:

• to remove, pull the cover toward you (PULL)
• to install, push the cover into place, guiding the black tabs into the white mounting slots (PUSH)

IPUPS-8-20-R5U0 is a ready-to-use kit designed to power an IP CCTV system consisting of 8 IP cameras. Electronic PoE output protection ensures continuous operation of the entire system in the event of a short circuit or overload on a single PoE port, and automatic voltage restoration after the failure has been resolved. The device is used in systems requiring increased network bandwidth, such as 4K Ultra HD CCTV monitoring.

Kits with PoE switches are designed to work with IP cameras and other network devices powered by PoE 802.3af/at and PoE PASSIVE standards.

Connecting appropriate batteries ensures uninterrupted operation of the power system during temporary mains power outages.

ABOX-R5U0 enclosure enables installation of the complete ATTE product range in a telecommunications rack cabinet, previously dedicated to ABOX series indoor and outdoor enclosures.

A well-thought-out and unique design allows for the installation of devices in a single enclosure, together with a buffer power supply and batteries. The body is made of steel sheet, and the cover is made of lightweight aluminum sheet. Both elements are powder-coated in a semi-matte graphite color, RAL 7024. Manufactured using a modern production line, ensuring the highest quality and precision.

ABOX-R5U0 features a special 10.8 mm hole pattern. It is compatible with the mounting hole spacing of modules for installation. This standardized system allows selected devices to be mounted vertically or horizontally in any perforated section of the enclosure.

Example application of the IPUPS-8-20-R5U0 kit to power a recorder along with 8 PoE IP cameras.
