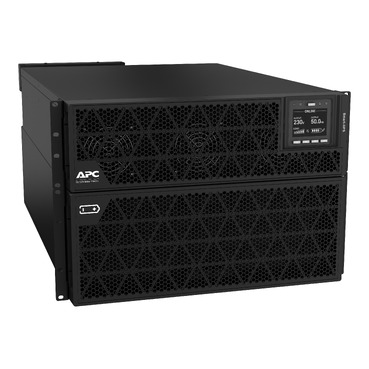

APC Smart-UPS on-line, 15kVA/15kW, rack/tower, 230V/380V...415V, hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), network card, W/O rail kit
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | UPS - rack-mountable / external |
| Height (Rack Units): | 7U |
| Colour: | Black |
| Power Device | |
| UPS Technology: | On-line |
| Input Voltage: | AC 380/400/415 V |
| Input Voltage Range: | AC 160 - 285 V |
| Frequency Provided: | 50/60 Hz ± 0.1Hz |
| Frequency Required: | 40 - 70 Hz |
| Input Connectors: | Hardwire 5-wire (3PH + N + G), terminal block |
| Power Output Connectors Details: | Hardwire 3-wire (1PH + N + G) 1 x power IEC 60320 C19 |
| Output Voltage: | AC 220/230/240 V 50/60 Hz |
| Power Capacity: | 15000 Watt / 15000 VA |
| Output Waveform: | Sinewave |
| Efficiency: | 93% Battery mode, 94% at 100% Load, 98% at 100% Green mode |
| Power Factor (PF): | 0.9 |
| Total Harmonic Distortion (THD): | 5 % |
| Battery | |
| Type: | Expandable |
| Technology: | Lead Acid |
| Voltage Provided: | 192 V |
| Run Time (Up To): | 4.75 min at full load 14 min at half load |
| Recharge Time: | 4 hours |
| Networking | |
| Remote Management Interface: | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol: | IPv6, Modbus, SNMP 1, SNMP 2, SNMP 3 |
| Expansion / Connectivity | |
| Interfaces: | 1 x EPO (emergency power off) 1 x management (Gigabit Ethernet) - RJ-45 2 x USB - 4 pin USB Type A 2 x management - RJ-45 1 x console - Micro-USB Type B 1 x management (RS-232) - RJ-45 1 x management (USB) - 4 pin USB Type B |
| Expansion Slots: | 1 (total) / 0 (free) x SmartSlot |
| Miscellaneous | |
| Cables Included: | RS-232 cable - external |
| Features: | Double conversion, LCD display, built-in static bypass, audible alarm, emergency power off |
| Compliant Standards: | CB, EN 62040-2, IEC 62040-2, IP20, UL 1449 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Sound Emission: | 58 dBA |
| Dimensions & Weight | |
| Width: | 44 cm |
| Depth: | 70 cm |
| Height: | 30.6 cm |
| Weight: | 142 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 59 cm |
| Shipping Depth: | 79 cm |
| Shipping Height: | 53.5 cm |
| Shipping Weight: | 156.7 kg |
