Description

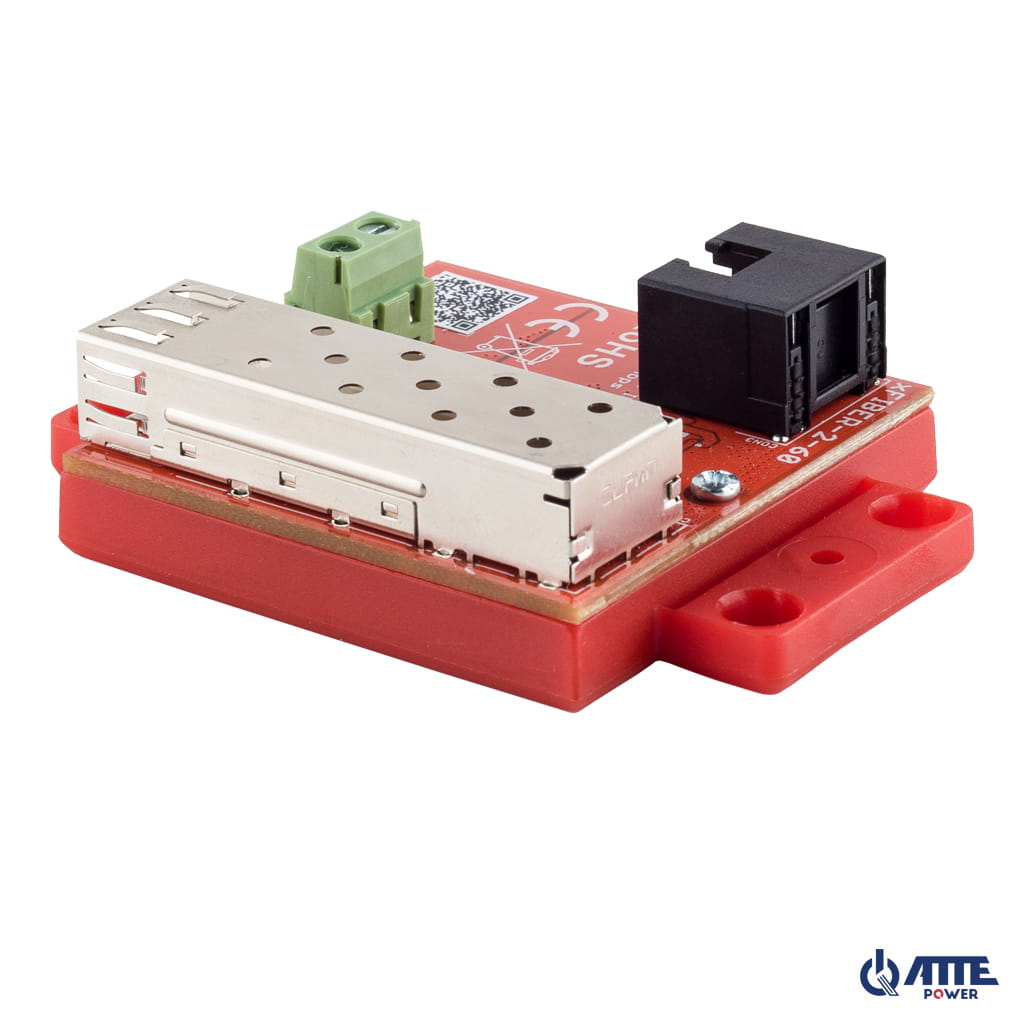

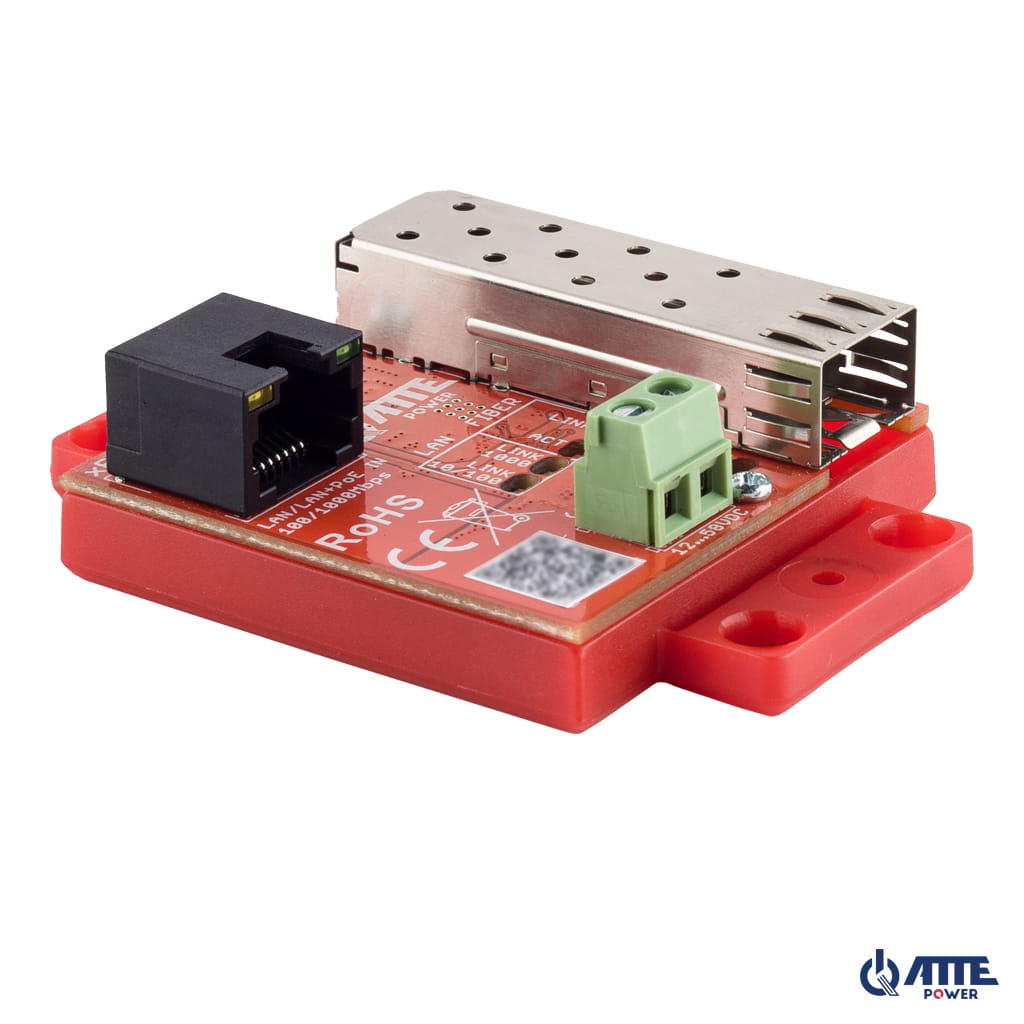

xFIBER-2-60 is a gigabit Ethernet - SFP converter dedicated to IP CCTV systems. The device enables two-way conversion of Ethernet copper signal to SFP optical signal.
Using any IEEE 802.3z-compatible SFP insert, we have the possibility to adapt the parameters of the optical path to the requirements of the installation (e.g. working with single-mode or multimode optical fibres).
The module can be powered via a screw connector or directly from a PoE switch operating in the 802.3af standard. This allows existing installations to be easily expanded with an additional SFP port without replacing the switch.

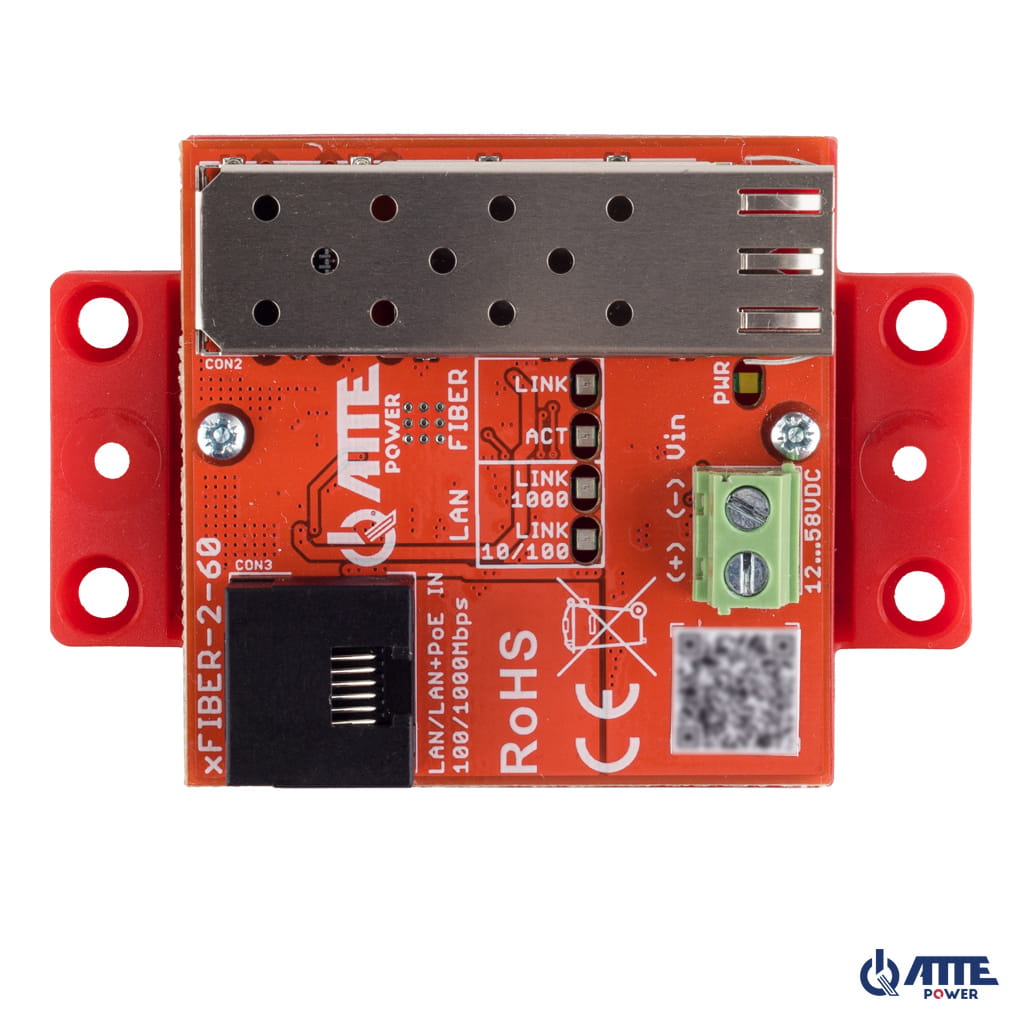

Connection, transmission and throughput information is indicated by LEDs:
- PWR - The device is powered
- FIBER ACT - Activity on the SFP port
- FIBER LINK - Transmission on the SFP port
- LAN LINK 1000 - Transmission on the LAN port 1000Mbps
- LAN LINK 10/100 - Transmission on a LAN port of 10/100Mbps
Key features and functions:
- ability to change transmission from Ethernet to fibre
- throughput of 1000Mbps
- the module can be powered by PoE or an external power supply
- clear indication of operating, throughput and transmission status.
- easy and quick start-up without configuring parameters
- wide operating temperature range
The device has a protection level of IP20, a suitable enclosure (minimum IP44) is required to ensure protection from the elements and condensation.
If the device will be used in a small space, it is possible to cut and break the mounting brackets of the base to reduce the dimensions of the module.

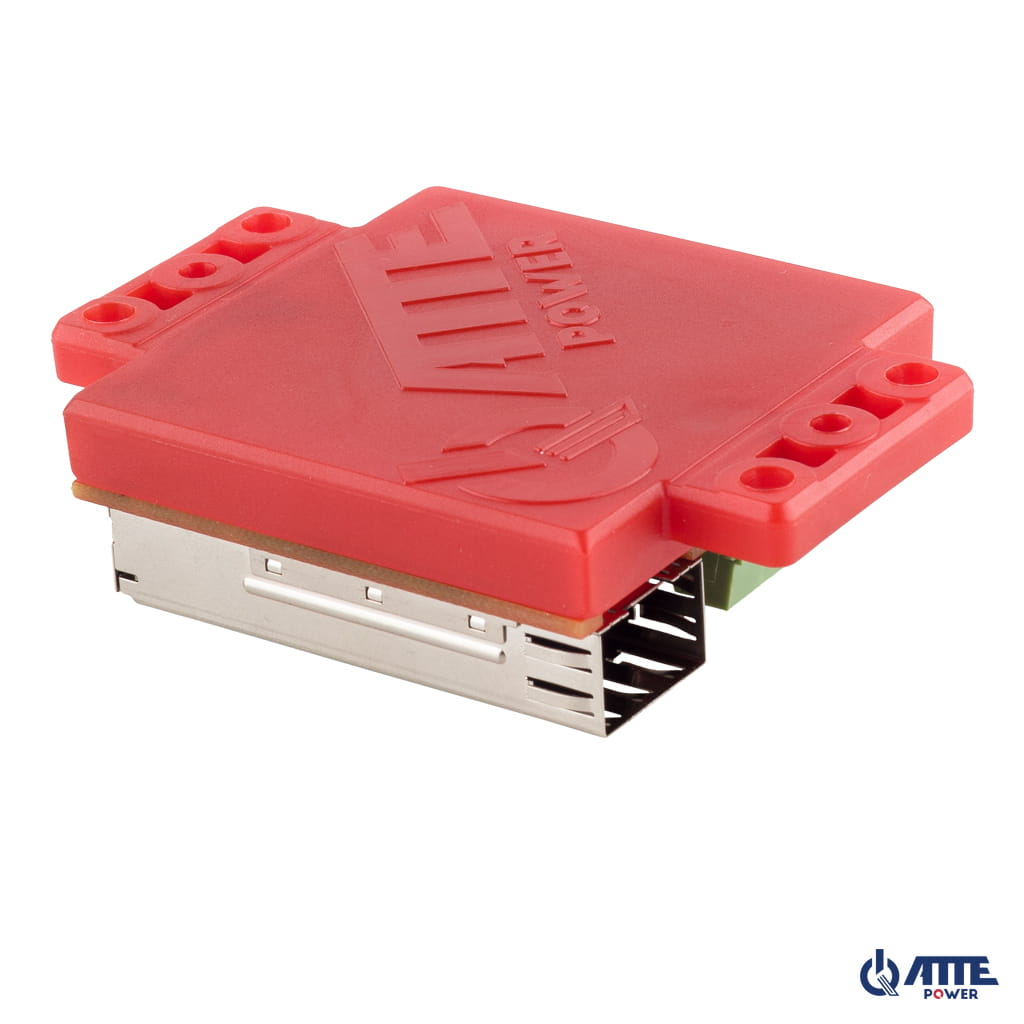

xFIBER-2-60 is equipped with a universal mounting base, which allows for installation in several ways:
- using the mounting studs on the 10.8mm grid, which is in all ABOX enclosures
- using the mounting studs for 19‘ and 10’ rack adapters
- by screwing through the additional holes to any flat surface
- using additional adapter ADD-TH35 it is possible to mount the module on the TH35 rail (DIN)
Installation notes
- The device does not work with IEEE 802.3u 100Base-FX SFP inserts.
- xFIBER-2-60 works with single-mode and multimode inserts compatible with the IEEE 802.3z standard.
- SFP inserts must be purchased separately (ATTE does not have inserts on offer).
Examples of applications
Example of the use of xFIBER-2-60 as a distribution point based on xPoE-10-20A-OF switch and xFIBER-2-60
Technical data
| Total number of ports: | 1 PoE IN port, 1 SFP port |
| PoE IN: | LAN/LAN + PoE IN |
| LAN 1000Mbps ports: | LAN/LAN + PoE IN |
| Input Voltage: | LAN/LAN + PoE IN - 35 ... 56 V / CON1 - 12 ... 58 V |
| Surge protection: | LAN/LAN + PoE IN, CON1 |
| LAN bandwidth indication: | LAN LINK 10/100 (green) - Transmission 10/100 Mbps LAN LINK 1000 (green) - Transmission 1000 Mbps |
| Fibre optic activity indication: | FIBER ACT (green) - activity on the SFP port |
| Fibre optic transmission indication: | FIBER LINK (green) - transmission set-up on SFP port |
| Power indication: | LED PWR (white) - presence of power |
| Transmission indication: | LAN ACT (green) - activity on the LAN port |
| Temperature range: | -25°C ... +65°C |

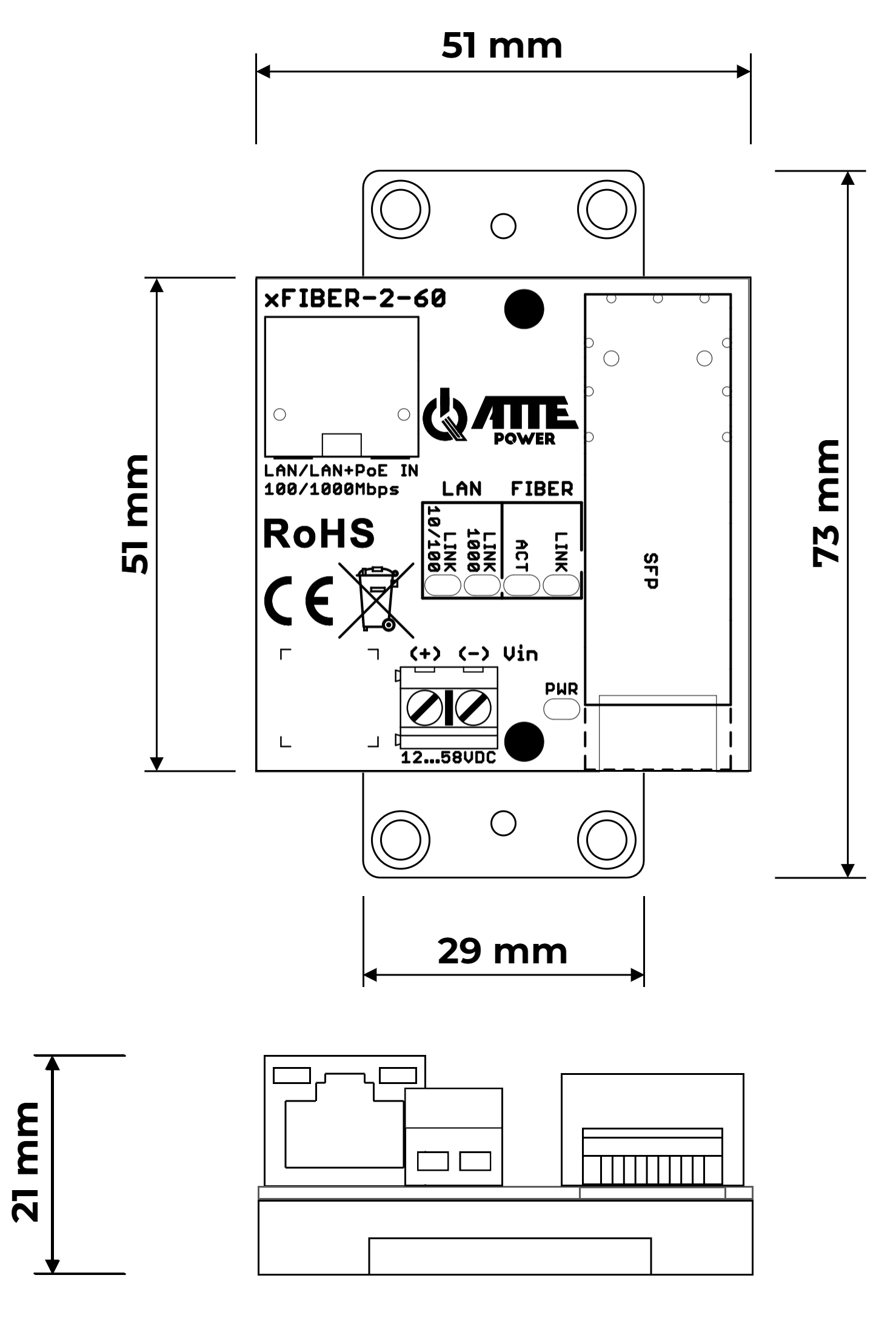

| Dimensions: | 51 x 51(73) x 21 mm |
| Weight: | 0,029 kg |
| IP rating: | IP20 |
| Housing construction: | Uniwersal mounting base |
| Assembly: | Mounting studs, TH35 rail with additional bracket, can be screwed to flat surface |
| EAN code: | 5902143691105 |
| PKWiU code: | 26.30.23.0 |
| HS code: | 8517 62 |
| CN2020 code: | 8517 62 00 |
